Acrylic Heat Bending Forming Process: Complete Guide, Benefits & Applications

Acrylic heat bending (also known as acrylic thermoforming or hot bend fabrication) is the most popular and cost-effective manufacturing process for shaping flat acrylic sheets into custom curved, angular, and three-dimensional products. Widely used in advertising, architecture, furniture, industrial equipment, and retail display industries, acrylic heat bending forming process delivers smooth, seamless, and high-transparency finished products that mechanical cutting and cold bending cannot achieve. This comprehensive guide breaks down the working principle, step-by-step process, key parameters, core advantages, common applications, and FAQs of custom heat bent acrylic fabrication, helping you fully understand this mature plastic processing technology.

1. What Is Acrylic Heat Bending Forming?

Acrylic heat bending is a physical plastic forming technology that utilizes the thermoplastic property of PMMA (polymethyl methacrylate) materials. The fundamental principle is straightforward: standard acrylic sheets have a stable rigid state at room temperature, with a softening point of approximately 95°C. When the material is evenly heated to 120°C–180°C (the optimal forming temperature range), the internal molecular structure of acrylic loosens, the sheet becomes flexible and malleable without melting or degrading. After manual or mechanical shaping and natural constant-temperature cooling, the acrylic solidifies permanently into the preset curved or angular shape, with stable structure and no rebound deformation.

Unlike cold bending, which easily causes acrylic cracking, white edges, and internal stress, acrylic hot bend fabrication realizes seamless integral forming without splicing, ensuring the original high light transmittance, weather resistance, and surface smoothness of acrylic materials. It is the preferred process for manufacturing integrated curved acrylic products.

2. Complete Step-by-Step Acrylic Heat Bending Process

Professional industrial acrylic heat bending follows standardized operating procedures to avoid defects such as uneven bending, bubbling, cracking, and surface scratches. The whole process is divided into 6 core steps, suitable for all custom acrylic heat forming projects:

Step 1: Material Selection & Pre-Processing

Select high-quality cast or extruded acrylic sheets according to product design requirements (thickness ranging from 1mm to 30mm). Clean the sheet surface thoroughly to remove dust, oil stains, and impurities, and trim the edges to eliminate burrs. Mark accurate bending lines and angles on the acrylic surface as the processing benchmark to ensure dimensional accuracy of finished products.

Step 2: Precise Uniform Heating

Heating is the most critical step in the acrylic thermoforming process. Different heating methods are adopted based on product types:

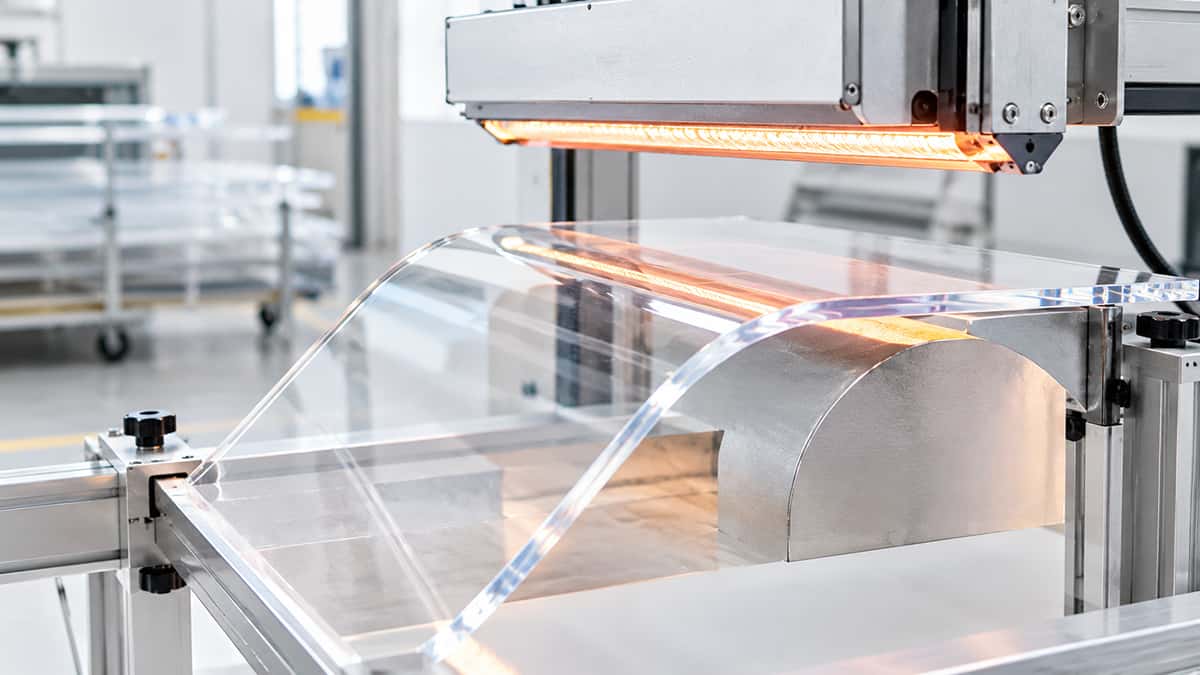

• Strip heating: Professional strip heaters for straight line bending, suitable for display stands, acrylic frames, and right-angle bending products. Keep the sheet 5–8cm above the heater for uniform heating.
• Hot gun heating: Flexible manual heating for small-scale irregular bending and on-site adjustment, ideal for small-batch customized products.
• Overall oven heating: Integral heating for large arc and multi-angle curved products, ensuring uniform softening of the entire sheet and no local hard spots.

Strictly control the heating temperature and time: 3–5 minutes of double-sided heating for 5mm thick acrylic sheets; thicker sheets require extended heating time to ensure core softening, not just surface softening. Avoid overheating (above 200°C) which causes bubbling, yellowing, and material deterioration.

Step 3: Precision Shaping & Bending

When the acrylic sheet reaches the optimal flexible state, quickly place it on a customized mold or fixture for bending and shaping. Operators apply uniform and gentle force along the preset bending line to avoid forced bending which causes internal stress. For standardized products, fixed-angle jigs are used to ensure consistent bending angles and radian for each batch of products.

Step 4: Constant-Temperature Cooling & Setting

After shaping, fix the acrylic product on the mold until it cools naturally to room temperature. Rapid forced cooling is strictly prohibited, as uneven shrinkage will lead to stress concentration, resulting in product deformation, cracking, or later-stage rebound. The cooling time varies with material thickness and bending complexity, ranging from several minutes to several hours, ensuring complete shaping and stable structure.

Step 5: Trimming & Polishing Post-Processing

Remove the cooled finished product from the mold, trim excess edges and corners, and perform fine polishing on bending edges and surfaces. This step eliminates minor processing marks, restores the high transparency of acrylic, and improves the overall texture and aesthetics of the product.

Step 6: Quality Inspection & Packaging

Inspect finished products for dimensional deviation, surface bubbles, cracks, yellowing, and bending uniformity. Qualified products are packaged with protective films and foam to prevent scratches and deformation during transportation.

3. Core Advantages of Heat Bent Acrylic Products

Compared with splicing, injection molding, and cold processing technologies, custom bent acrylic products processed by heat bending have irreplaceable competitive advantages, which is why they are widely favored in various industries:

• Seamless Integral Forming: No splicing gaps or solder joints, smooth and integrated surface, effectively avoiding dust accumulation and gap aging, improving product durability.
• Excellent Optical Performance: The low-temperature heating process does not damage the acrylic material properties, maintaining 92%+ high light transmittance, no fogging or yellowing, with superior display effect.
• High Customization Flexibility: Supports arbitrary angles, arcs, and multi-dimensional bending, adaptable to personalized designs of various complex-shaped products, with low mold opening cost and short production cycle.
• Stable Physical Properties: Reasonable heating and cooling process eliminates internal stress, products are not easy to deform, crack or rebound, with strong weather resistance, suitable for indoor and outdoor long-term use.
• Cost-Effective: Suitable for both small-batch customized orders and large-scale mass production, with lower processing cost than integral injection molding and higher quality than manual splicing.

4. Main Applications of Acrylic Heat Bending Products

Relying on its flexible shaping and high-quality performance, the acrylic heat bending forming process covers a wide range of commercial and industrial scenarios:

• Retail & Commercial Display: Acrylic display stands, cosmetic display racks, supermarket shelf baffles, exhibition booth curved panels, sign holders
• Architectural & Decoration: Indoor curved partitions, acrylic ceiling panels, stair handrails, decorative arc baffles, window coverings
• Industrial & Equipment: Mechanical protective covers, equipment observation windows, anti-static acrylic baffles, instrument display panels
• Furniture & Daily Necessities: Acrylic coffee tables, curved chair back panels, storage boxes, transparent partitions
• Advertising & Media: Curved light box panels, luminous character bottom plates, advertising display screens, promotional exhibition materials

5. Common Defects & Solutions in Acrylic Heat Bending

In actual production, improper parameter control may cause product defects. Summarized common problems and targeted solutions to help you judge product quality quickly:

• Surface Bubbles & Yellowing: Caused by excessive temperature or long-time high-temperature heating. Solution: Strictly control the heating temperature within 120–180°C and avoid local overheating.
• Bending Cracking & White Edges: Caused by insufficient heating and forced bending. Solution: Extend heating time to ensure full softening of the sheet core, and bend gently and evenly.
• Product Deformation & Rebound: Caused by rapid cooling or unfixed shaping. Solution: Cool naturally with mold fixation, avoid forced air cooling or water cooling.
• Uneven Bending Radian: Caused by uneven heating. Solution: Adjust heating equipment to ensure consistent temperature on the bending line and uniform stress during shaping.

6. Frequently Asked Questions (FAQs)

Q1: What is the best temperature for acrylic heat bending?

The optimal processing temperature is 120°C–180°C. Thin sheets (1–3mm) adapt to 120–140°C, medium sheets (4–10mm) 140–160°C, and thick sheets (10mm+) 160–180°C. Never exceed 200°C to prevent material damage.

Q2: Can heat bent acrylic products be used outdoors?

Yes. High-quality acrylic raw materials combined with standard heat bending process retain excellent UV resistance and weather resistance. The products will not deform or fade after long-term outdoor use, meeting outdoor advertising and architectural decoration needs.

Q3: What is the difference between heat bending and cold bending of acrylic?

Cold bending is suitable for ultra-thin sheets with simple angles, prone to cracking and residual stress. Heat bending supports all thicknesses and complex shapes, with seamless forming, stable quality and no hidden dangers, which is the mainstream industrial processing method.

Q4: Is custom small-batch acrylic heat bending available?

Absolutely. The heat bending process has no high mold cost threshold, supporting one-piece customization and small-batch trial production, with flexible delivery cycle and high cost performance.
