Key Points to Check When Reviewing Acrylic Supplier Samples

Sourcing acrylic sheets and custom acrylic parts for your business? Requesting and reviewing acrylic supplier samples is one of the most important steps before approving mass production. Many B2B buyers skip detailed sample checks, only to discover defects, inconsistent color or dimensional errors after bulk shipment — resulting in rework, delays and wasted budget.

This acrylic sample inspection checklist walks you through every critical item you need to verify when evaluating acrylic supplier samples. Use this guide to compare multiple vendors and confirm whether their finished quality matches your product requirements.

1. Confirm the Sample Represents Actual Bulk Production

The first rule of acrylic sample review: do not judge a supplier only by their “perfect showcase sample.”

Many factories send their best hand-picked pieces for sampling, while regular mass production runs use lower-grade material. Always ask the supplier to provide production-representative samples, cut from the same raw material and production line that will be used for your bulk order.

• Request samples with your actual thickness, color, size and processing requirements
• Ask for multiple pieces from the same batch to test consistency
• Keep approved samples as your master reference for final inspection

2. Visual Inspection: Surface Quality & Optical Clarity

Visual defects are the most common acrylic quality issues. Inspect samples under natural daylight and strong backlight to spot hidden flaws that are invisible in dim rooms.

What to check:

• No fine scratches, dents, dust particles or stains on the acrylic surface
• No bubbles, haze, cloudiness or internal impurities inside the sheet
• Uniform transparency; no optical distortion when viewing objects through clear acrylic
• Protective PE film: intact, evenly attached, easy to peel without leaving sticky residue

Red flags: foggy areas, embedded particles, visible scratches or uneven gloss. These defects will directly ruin finished products such as display stands, photo frames, signage and aquariums.

Backlight inspection to find bubbles and impurities inside acrylic sheet

3. Thickness Tolerance & Dimensional Accuracy

Thickness variation is a frequent pain point. Even a small tolerance gap can cause assembly gaps, warping and fitting problems.

Use calipers to measure thickness at multiple positions (four corners + center) on each sample:

• Compare measured thickness against your drawing specification
• Confirm the agreed tolerance range (e.g. ±0.2mm or ±0.5mm)
• Measure length, width, hole position and squareness for custom cut acrylic parts

Extruded acrylic usually delivers tighter thickness consistency, while cast acrylic often has wider tolerance.
A common misconception: cast acrylic has better optical quality but looser thickness tolerance, while extruded acrylic provides tighter thickness control. Clarify this difference with your acrylic supplier before sampling.

Measuring acrylic sheet thickness with digital caliper

4. Edge Finish & Processing Workmanship

Acrylic edge treatment directly impacts product look and safety. Common finishes include diamond polish, flame polish, laser cut and saw cut.

Check each sample edge carefully:

• Polished edges: crystal clear, no white fog, no chips or micro-cracks
• Laser cut edges: smooth, minimal burn marks
• Bonded / glued joints: transparent, no bubbles, no excess glue traces, strong bonding without gaps

Poor edge polishing and cracked joints are top reasons for rejected acrylic display products.

5. Color Consistency & Color Matching

For tinted, opaque, frosted or custom-colored acrylic products, color matching between sample and bulk is critical.

• Compare the sample against your Pantone or color master sample under consistent lighting
• Check color uniformity across one single sheet and between multiple sample pieces
• Confirm UV stability if your final product will be used outdoors. Low-quality colored acrylic fades quickly under sunlight.

Keep the approved color sample sealed and stored away from UV light for later batch comparison.

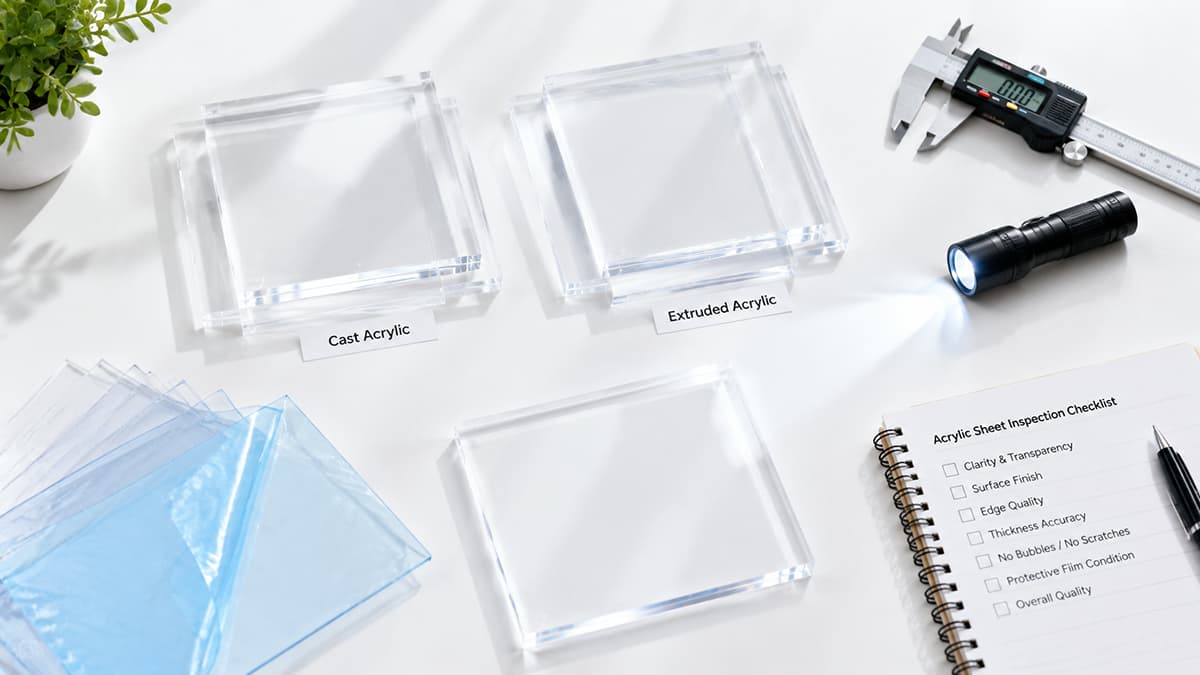

6. Material Grade: Cast Acrylic vs Extruded Acrylic

Two major acrylic types behave very differently. Confirm what material your supplier sent in samples.

• Cast acrylic (PMMA): higher purity, better UV resistance, excellent optical clarity, better chemical resistance, ideal for high-end displays, outdoor signs and aquariums. Note: it comes with wider thickness tolerance.
• Extruded acrylic: lower cost, tighter thickness tolerance, easier thermoforming, suitable for simple indoor disposable products and precision assembly where consistent thickness is required.

Do not let a supplier substitute extruded acrylic if you requested cast acrylic for your project, and vice versa.

7. Functional & Environmental Testing (For Advanced Validation)

Beyond visual checks, run simple functional tests if your application requires durability:

1. Flatness test: place sample on flat table to check warpage or bending
2. UV aging test (accelerated or outdoor exposure) for outdoor products
3. Impact test if your acrylic parts need anti-break performance
4. Chemical resistance test if your product contacts cleaning liquids

You can also request material certificates, RoHS, food contact or ISO documents from the acrylic supplier according to your market compliance requirements.

8. Packaging of the Sample

How the supplier packs samples reveals their quality awareness for bulk shipments.

Check whether samples are protected properly with protective film, foam and hard cartons. Scratched or cracked samples arriving at your office often mean they will not handle bulk shipping carefully.

FAQ — Acrylic Supplier Sample Review

Q1. Should I pay for acrylic samples?

Most acrylic suppliers charge sample fees, which can be refunded once bulk order reaches a certain MOQ. It is a low-cost investment to avoid huge mass order losses.

Q2. How many acrylic samples should I request?

We recommend at least 2–3 pieces from the same batch for consistency testing. For custom processed parts, request one fully finished sample matching your final product.

Q3. What is the biggest red flag when checking acrylic samples?

A supplier sends beautiful samples but refuses to provide production batch samples, or cannot provide written specs for material grade, tolerance and color control.

Final Takeaways

Reviewing acrylic supplier samples carefully is not optional — it is your risk control gate before committing to large orders. By checking optical clarity, thickness tolerance, edge workmanship, color consistency and material grade, you can filter unreliable vendors and lock in stable acrylic quality.
